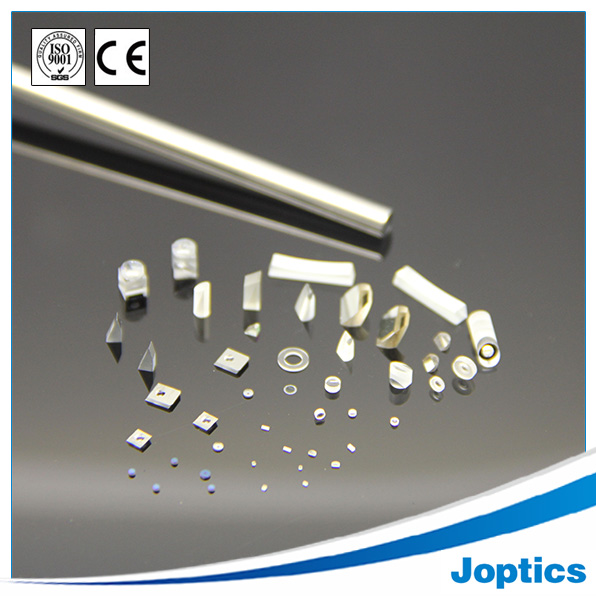

Prism used in medical and military products

Prism used in medical and military products


1, Prism or lens used for medical and military products 2, Micro and high precision 3, Schott Glass material 4, Customized according to client's drawings

  1. Detailed information

As a professional manufacturer for processing, we prefer quote you according to client¡¯s drawings include details. We have more than 10 years manufacturing experience for micro and precision optics, especially in medical endoscope field. Our products are approved by European and USA Clients.

Enterprise Philosophy: Trust, Faithfulness, Mutual Benefit.


Prism Manufacturing Specifications


Commercial

Precision

High Precision

Material

Schott Glass Material for Endoscope

Dimensions

0.2 ¨C 200mm

2 ¨C 150mm

2 ¨C 150mm

Dimensional Tolerance

¡À0.25mm

¡À0.1mm

¡À0.05mm

Irregularity

1.0¦Ë

0.5¦Ë

0.05¦Ë

Angle Accuracy

¡À3 arcmin

¡À30 arcsec

¡À1 arcsec

Pyramidal Accuracy (for corner cuber)

¡À3 arcmin

¡À1 arcmin

¡À5 arcsec

Bevel (Face Width @ 45¡ã)

¡À0.2mm

¡À0.1mm

¡À0.05mm

Surface Quality

60-40

40-20

10-5
