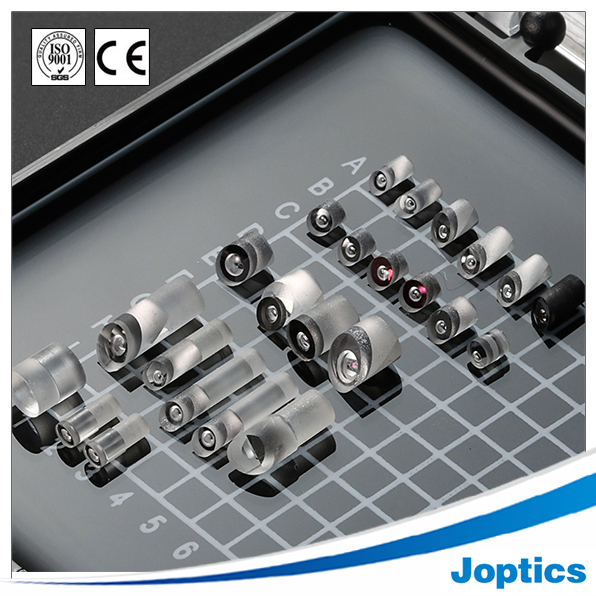

Objective Lens for Endoscopy
Joptics Philosophy: Trust, Faithfulness, Mutual Benefit.
As a professional manufacturer for processing, we prefer quote you according to client¡¯s drawings include details. We have more than 10 years manufacturing experience for micro and precision optics, especially in medical endoscope field. Our products are approved by European and USA Clients.
Manufacturing Specifications | |||
| Commercial | Precision | High Precision |
Material | Schott Glass Material for Endoscope | ||
Dimensions | 0.2 ¨C 200mm | 2 ¨C 150mm | 2 ¨C 150mm |
Dimensional Tolerance | ¡À0.25mm | ¡À0.1mm | ¡À0.05mm |
Irregularity | 1.0¦Ë | 0.5¦Ë | 0.05¦Ë |
Angle Accuracy | ¡À3 arcmin | ¡À30 arcsec | ¡À1 arcsec |
Pyramidal Accuracy (for corner cuber) | ¡À3 arcmin | ¡À1 arcmin | ¡À5 arcsec |
Bevel (Face Width @ 45¡ã) | ¡À0.2mm | ¡À0.1mm | ¡À0.05mm |
Surface Quality | 60-40 | 40-20 | 10-5 |
